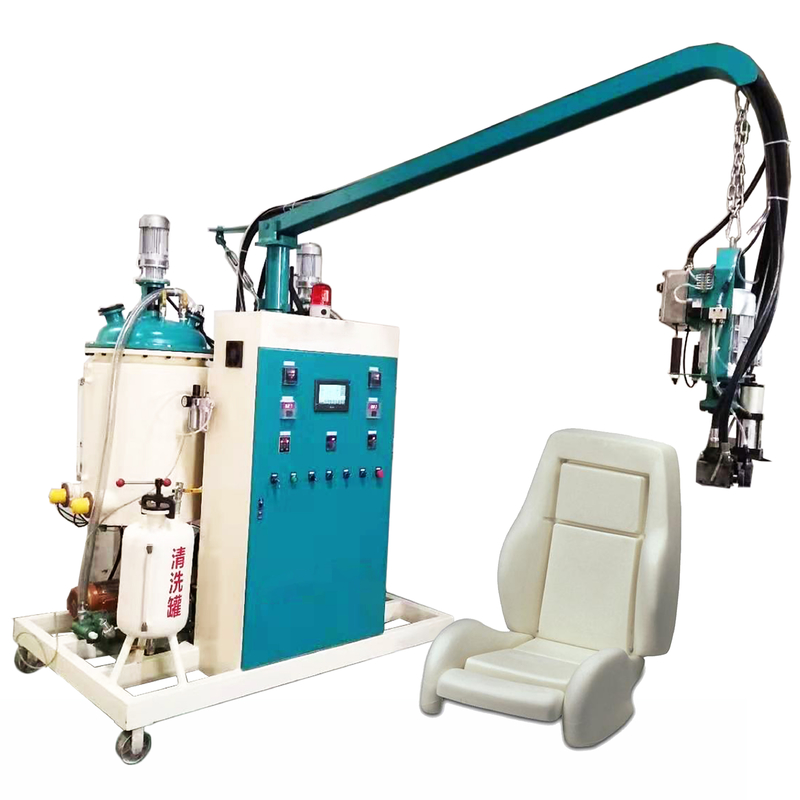

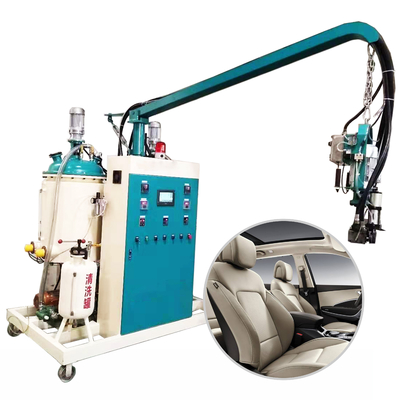

Car Seat Making 80g/s Low Pressure PU Foaming Machine

Car Seat Making 80g/s Low Pressure PU Foaming Machine

  • Car Seat Making 80g/s Low Pressure PU Foaming Machine
  • Car Seat Making 80g/s Low Pressure PU Foaming Machine
  • Car Seat Making 80g/s Low Pressure PU Foaming Machine
  • Car Seat Making 80g/s Low Pressure PU Foaming Machine
Car Seat Making 80g/s Low Pressure PU Foaming Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Yongjia
Certification: CE
Model Number: Low Pressure Foam Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: sea worthy wooden box for New Design Polyurethane Foam Machine For Car Seat Making
Delivery Time: 45-60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month polyurethane foam machine
Contact Now
Detailed Product Description
Machine Type: Injection Machine Condition: New
Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm Product Type: Foam Net
Voltage: 380V Power (kW): 168kW
Weight (KG): 1200 KG Warranty: 1 YEAR
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support Key Selling Points: Automatic
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Showroom Location: Turkey, Pakistan, India
Applicable Industries: Manufacturing Plant Name: Injection Foam Equipment
Filter: Self-cleaning Filter Material Feeding: Automatic Feeding System
Control System: PLC Metering Pump: Precise Metering
Tank Volume: 250L Power: Three-phase Five-wire 380V
Port: Ningbo
High Light:

168kW Low Pressure PU Foaming Machine

,

80g/s Low Pressure PU Foaming Machine

,

5000rpm Polyurethane Foam Machine

New Design Polyurethane Foam Machine For Car Seat Making

Product Description:


Polyurethane low-pressure foaming machine is widely used in multi-mode continuous production of rigid and semi-rigid polyurethane products, such as: petrochemical equipment, directly buried pipelines, cold storage, water tanks, meters and other thermal insulation and sound insulation equipment craft products.



No. Item Technical parameter
1 Foam application Flexible Foam Seat Cushion
2 Raw material viscosity(22℃)

POL ~3000CPS

ISO ~1000MPas

3 Injection flow rate 80-450g/s
4 Mixing ratio range 100:28~48
5 Mixing head 2800-5000rpm, forced dynamic mixing
6 Tank Volume 120L
7 Input power Three-phase five-wire 380V 50HZ
8 Rated power About 11KW
9 Swing arm Rotatable 90°swing arm, 2.3m (length customizable)
10 Volume 4100(L)*1300(W)*2300(H)mm, swing arm included
11 Color( customizable) Cream-colored/orange/deep sea blue
12 Weight About 1000Kg

Features of Low Pressure Foam Machine:

1. Accurate measurement: high-precision low-speed gear pump, error ≤0.5%.
2. Uniform mixing: Multi-tooth high-shear mixing head is used, with reliable performance.
3. Pouring head: special mechanical seal is used to prevent air leakage and material pouring.
4. The material temperature is stable: the material tank adopts its own heating temperature control system, and the temperature control is determined, and the error is ≤2℃
5. The whole machine adopts 7-inch touch screen and PLC module control, which can be poured regularly and quantitatively and can be automatically cleaned by air flushing.

Raw Material Formula Solution Support:

We have our own technical team of chemical engineers and process engineers, all of whom have more than 20 years of experience in PU industry. We can independently develop raw material formulas like polyurethane rigid foam, PU flexible foam, polyurethane integral skin foam and polyurea that meet all customer' s requirements.


Application:

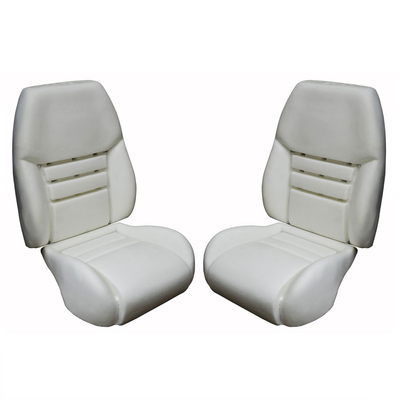

Polyurethane foam is overwhelmingly used for the padding of car seats because of the freedom of geometric design it offers. And also because it can be adapted, via the formulation used or via the production process, to reach the level of comfort targeted for the car seat.


Car Seat Making 80g/s Low Pressure PU Foaming Machine 0



Our Factory:


Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).



Car Seat Making 80g/s Low Pressure PU Foaming Machine 1

FAQ:


1. Are you factory or trading company?

We are professional factory in PU industry with more than 10 years experience, covering high pressure pouring machine,low pressure foaming machine, pu spraying foam machine,pu elastomer casting machine and production line.

2. Where is your factory ?

Our Factory is located in Wuxi city, Jiangsu Province.

3. How can I get your factory?

By air: You can take a plan to WUXI airport from China, if you fly from Korea ,Japan, USA, Singapore, Taiwan, Thailand you will can directly fly to us.
By Train: You can stop at WUXI station, Not WUXI EAST station.

4. Do you provide pick-up service?

Yes, of course. If you are in Wuxi airport or station, we can arrange a special car to pick you up directly to our factory.

5. What is the PU raw material used with this polyurethane/polyurea foam casting machine?

Polyurethane which has two components polyol and isocyanate(poly and iso/mdi). Polyurea also can be used which helps to waterproofing and Anticorrosion and rust prevention. Polyurethane can be divided into two kinds, flexible foam and rigid foam. And flexible foam or rigid foam also has two kinds, open cell foam and closed cell foam.

6. If I need to develop a special PU raw material formula solution based on my product, can you provide it?

Yes, we can. We have technical team of chemical engineers and process engineers, all of whom have more than 20 years of experience in PU industry. We can independently develop raw material soluation like polyurethane rigid foam, polyurethane flexible foam, polyurethane integral skin foam and polyurea to meet customer' s requirements.

7. What is the application of PU foam machine?

PU polyurethane foam injection molding machine includes high pressure machine and low pressure machine, etc. They can make PU rigid foam products like PU crown molding, PU bed sets, PU plastering float, PU coldroom panel; PU flexible foam products like car seat cushion and car headsets, memory foam pillow, slow rebound ear plugs, PU stress ball and kids toy.
Polyurethane PU elastomer machines produce elastomeric products. PU elastomer products like forklift wheel, rollers, sieve screen and so on.
You need to tell us specific machine application and budget, to spray or cast, then we can recommend suitable machine for you.
