24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting

24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting

  • 24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting
  • 24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting
  • 24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting
24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Yongjia
Certification: CE
Model Number: Spraying Gun
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: sea worthy wooden box for Wholesale PU Spray Foam Insulation Kit Equipment for High Quality Polyurethane PU Foam Spray Machine For Insulation Made In China
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 1000 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Pu Foam Spray Machine Material: Polyurethane
POWER SOURCE: 3-phase 4-wires 380V 50HZ HEATING POWER (KW): 11
AIR SOURCE (min): 0.5~0.8Mpa≥0.9m3 MAXIMUM OUTPUT (Mpa): 11
Matrial A:B=: 1:1~1:2 (adjusted)
High Light:

24Mpa pu foam spray gun

,

self cleaning pu foam spray gun

,

24Mpa polyurethane foam gun

High Pressure Polyurethane PU Foam Spray Gun Air Purge Spray Gun For Polyurethane Spray Foam Machine

Introduction of polyurethane foam spraying machine gun:

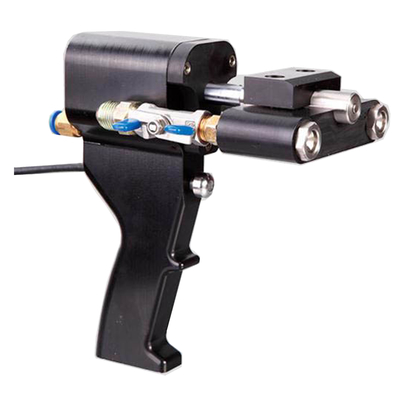

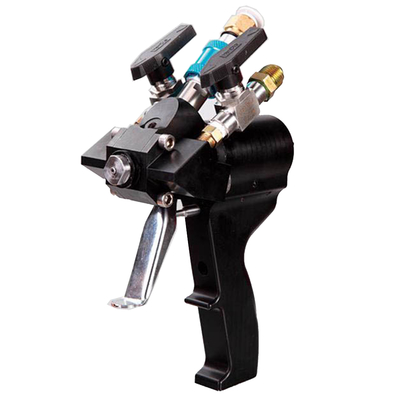

Two different spray guns for polyurethane foam spray machine, left one for foam injection, right one for foam spraying.
The gas spring is designed of the gun shot ensures the shooting Flexibility.
Self-cleaning air, replacement and maintenance easier and faster.



Max.fluid working pressure 24Mpa
Air inlet pressure 0.4-0.8mpa
Cleaning method self cleaning with air
Working flow 2-9kg/min
Mix Chamber Size 1.3mm(1.5mm could select)
Spray nozzle size 1.6mm(1.8mm or 2.0mm could select)
Spray gun parts Could send the total part list about the spray gun for extra select
Gross weight 2.0kg
Packing size 25cm x 25cm x 10cm


Main Features of polyurethane spray foam gun:


1. The heating power of the new one is 30KW, making sure the fast heat-up even under cold weather.

2. The maximum material outflow has upgraded to 17kg/min so the machine can perform well during large volumn injection project.

3. The new one weighs lighter than the previous one because we use the best yet lighter material from outside to inside, frame, booster pump, all the main parts of the machine, making sure the good quality and durable.

4. We use the hydraulic station with the rock-solid quality, guaranteeing the heart of the machine-lasts longer.


Applications


1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers, trucks, refrigerated trucks, tank, etc.

2. Casting: solar water heaters, tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.



24Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting 024Mpa polyurethane PU Foam Spray Gun Fast Heating flexible shooting 1
